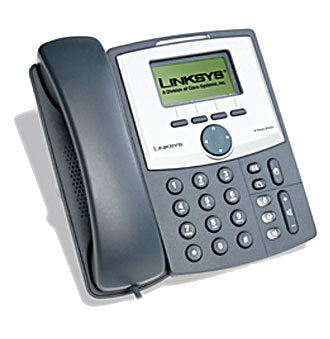

Modelo: SPA-921

Stylish and functional in design, the SPA-921 IP Phone is ideal for a residence or business using a hosted IP telephony service, an IP PBX, or a large scale IP Centrex deployment. The SPA-921 leverages industry leading VoIP technology from Linksys to deliver an upgradeable high quality IP phone that is unparalleled in features, value, and support. Standard features on the SPA921 include a high resolution graphical display, speakerphone, and a 2.5 mm head-set port.

Linksys SPA-921 NA 1-Line SIP Phone – 2 Line Appearances

The SPA921 supports one line with two call appearances and provides support for three way conferencing, attended call transfer, and placing a call on hold to answer an incoming call. The line can be configured as a unique phone number (or extension), or can be configured to share a number that is assigned to multiple phones.

Features:

• Full featured one-line business class IP phone
• Connect directly to an Internet Telephone Service Provider or connect to an IP PBX
• Speakerphone. Caller ID. Call Hold, Transfer, Conferencing,and more
• Easy installation with secure remote provisioning. Menu based and web based configuration.

Comprehensive Interoperability and SIP Based Feature Set

Based on the SIP standard, the SPA-921 has been tested to ensure comprehensive interoperability with equipment from VoIP infrastructure leaders enabling service providers to quickly roll-out competitive, feature rich services to their customers. With undreds of features and configurable sevice parameters, the SPA-921 addresses the requirements of traditional business users while leveraging the advantages of IP telephony. Features such as easy station moves, presence,and shared line appearances (across local and geographically dispersed locations) are just some of the many advantages of the SPA921.

Carrier-Grade Security, Provisioning, and Management
The SPA921 uses standard encryption protocols to provide secure remote in-service software upgrades. Linksys secure remote provisioning tools include detailed performance measurement and troubleshooting features, enabling network providers to deliver high quality support to their subscribers. Remote provisioning also saves service providers the hassle and expense of managing, preloading, and re-configuring customer premise equipment (CPE).

Package Contents

• 1 – SPA-921 IP Phone, Handset, and Stand
• 1 – Handset Cord – 56 cm (26 in)
• 1 – 5v Power Adapter – 1.8 m (6 ft) Cord
• 1 – RJ45 Ethernet Cable – 1.8 m (6 ft) Cord
• 1 – Quick Installation Guide

Telephony Features

• One Voice Line with Two Call Appearances
• Backlit Pixel Based Display: 128×64 Monochrome Graphical Liquid Crystal Display (LCD)
• Line Status – Active Line Indication, Name and Number
• Menu Driven User Interface
• Shared Line Appearance
• Speakerphone
• Call Hold
• Music on Hold
• Call Waiting
• Caller ID Name and Number and Outbound Caller ID Blocking
• Outbound Caller ID Blocking
• Call Transfer – Attended and Blind
• Three Way Call Conferencing with Local Mixing
• Connects to External Conference Bridge for Multi-party Conferencing
• Automatic Redial of Last Calling and Last Called Numbers
• On-Hook Dialing
• Call Pick Up – Selective and Group
• Call Park and UnPark
• Call Swap
• Call Back on Busy
• Call Blocking – Anonymous and Selective
• Call Forwarding – Unconditional, No Answer, On Busy
• Hot Line and Warm Line Automatic Calling
• Call Logs (60 entries each): Made, Answered, and Missed Calls
• Redial from Call Logs
• Personal Directory with Auto-dial (100 entries)
• Do Not Disturb (callers hear line busy tone)
• Digits Dialed with Number Auto-Completion
• Anonymous Caller Blocking
• URI (IP) Dialing Support (Vanity Numbers)
• On Hook Default Audio Configuration (Speakerphone and Headset)
• Multiple Ring Tones with Selectable Ring Tone per Line
• Called Number with Directory Name Matching
• Call Number using Name – Directory Matching or via Caller ID
• Subsequent Incoming Calls with Calling Name and Number
• Date and Time with Intelligent Daylight Savings Support
• Call Duration and Start Time Stored in Call Logs
• Call Timer
• Name and Identity (Text) Displayed at Start Up
• Distinctive Ringing Based on Calling and Called Number
• Ten User Downloadable Ring Tones – Ring Tone Generator Free from www.linksys.com
• Speed Dialing, Eight Entries
• Configurable Dial/Numbering Plan Support
• Intercom
• Group Paging
• NAT Traversal, including STUN Support
• DNS SRV and Multiple A Records for Proxy Lookup and Proxy Redundancy
• Syslog, Debug, Report Generation, and Event Logging
• Secure Call Encrypted Voice Communication Support
• Built-in Web Server for Administration and Configuration with Multiple Security Levels
• Automated Remote Provisioning, Multiple Methods. Up to 256 Bit Encryption: (HTTP, HTTPS, TFTP)
• Optionally Require Admin Password to Reset Unit to Factory Defaults
• * Feature requires support by call server

Hardware Features

Data Networking

Provisioning, Administration & Maintenance

Physical Interfaces

Power Supply

Indicator Lights/LED*

• Four (4) Call Appearance/Line Buttons with Associated Tricolor LED
• Line LED State Indication: Active, Idle, On Hold, Unregistered
• Speakerphone On/Off Button with LED
• Headset On/Off Button with LED
• Mute Button with LED
• Message Waiting Indicator LED
• Voicemail Message Retrieval Button
• Hold Button
• LED Test Function
